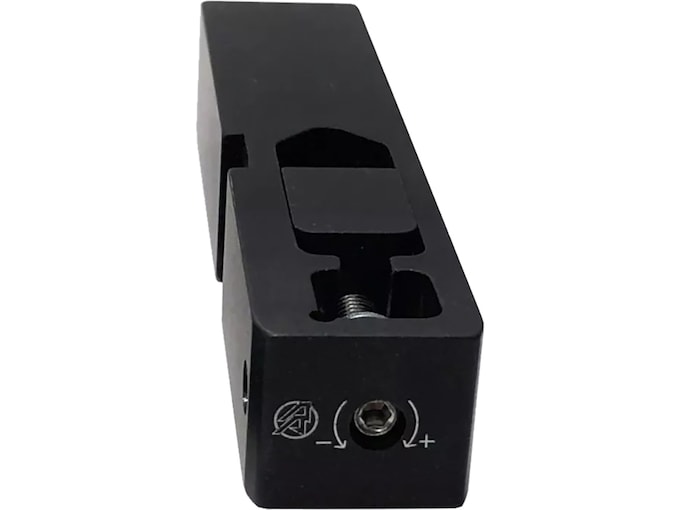

Double-Alpha Extra-Short Charge Bar for Dillon XL750 Powder Measure

Description

The Double-Alpha Extra-Short Dillon Powder Bar was developed to meet a specific need, created with the introduction of the Dillon XL750 press. In the 750, the Dillon Powder Measure is angled such that the powder bar must extend directly over station #4 in the toolhead, and it cannot be repositioned. This Is not an issue if you have a short die in that station. However, if you wish to run a powder check in station #3, and a bullet dropper in station #4, as many do, this creates a serious problem. The original Dillon Powder Bar is too long, and it will extend and impact the bullet dropper in station #4, preventing correct function.In order to resolve this problem, DAA designed an innovative extra-short powder bar that shortens the extension range towards station #4 by a full 30mm (1.15″), resolving the issue. When fully extended, the Extra-Short charge bar stops short of contacting a Mr.Bulletfeeder Dropper or Mini Mr. BF tube assembly. Features The charge capacity of the Extra-Short bar is approx.. 95% of the Original Dillon small charge bar.This design does require the use of a 2.5mm Allen key (not included) to adjust the powder charge, and the Click-Adjustable screw has 12 clicks per rotation for precise charge setting.Made from black anodized 6061 Aluminum.Small and Large powder bar (select model)WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.
